Dual brick arches supported in mid- air, what? Sometimes, visualization software does just what you want, (in this case formZ). Actually it is a brick donut vault supported at center by a suspension truss described below.

It is a proposed vault system combining dual compressive arches with a recurve truss system. Both arches meet at a bowed center. The arch ends rest on a bow sting suspension.  (This articles assumes that comprehensive engineering would be carried out by licence professionals as a first step before any building would begin. The author only has formZ and artistic licence ;)

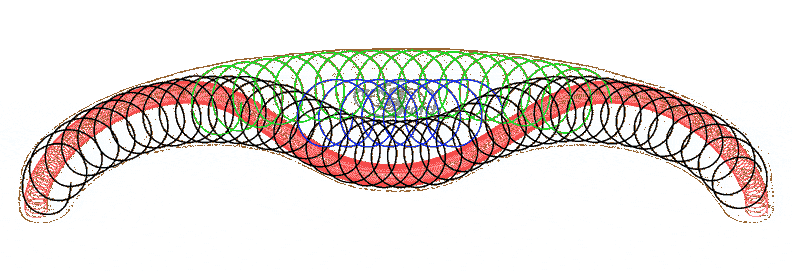

The concept above effectively doubles compressive arch spanning. A clear span, Mexican style Bobedero finish is rendered quickly in formZ.  The visualization below depicts the recurve cable truss. This truss would be made with high tensile, flat coiled bars, wires or filaments. The flat coils would amply overlap. (Several variations appear on this website.) Colors are used to help distinguish the individual coils. The heavy black represents the largest coil.  The red coil follows the cable path as in a suspension bridge. This red recurve might be replaced by a simpler (set of) cable(s) or bar(s) as shown in some associated models. Ultimate specifications are the domain of engineers, (while the pages of this website are in the conceptual realm primarily). The other colors help distinguish the - overlapping- continuous- coils. These coil or ring like reinforcements bind the entire truss together, after concrete or other cementitious composite consolidates the whole.

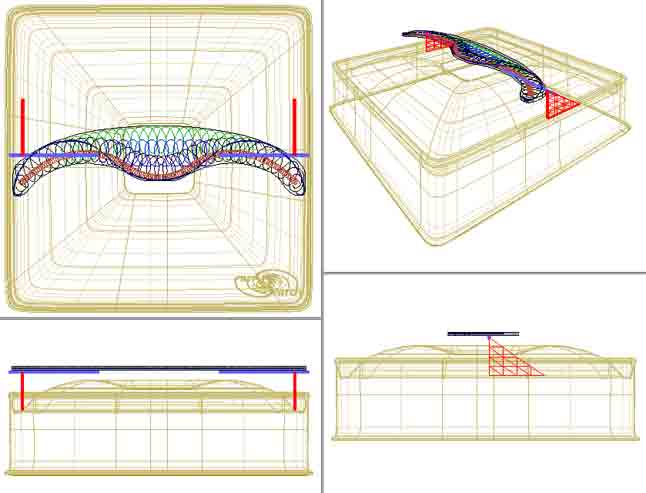

Innovative means are also considered to construct the truss and the vault.  The vault parts could be formed with a balanced tiltup of quarter-sections, much as the manner described on this page. A temporary support would be needed at center. Next the recurve truss would be formed on top, as illustrated below. A shaped form would be made first, (not shown). An axle (blue) would be provided to pivot upon the temporary (red) supports.The truss materials would be assembled on top. Coiled material is relatively easy to handel without needs to cut and place sharp edged meshes. Potentially, no welding or expensive joining would be needed. Fine tuned- overlapped positioning of coils has been made easy with simple weights or bars, to hold desired positioning. Then, these temporary stays are removed while cement is applied.

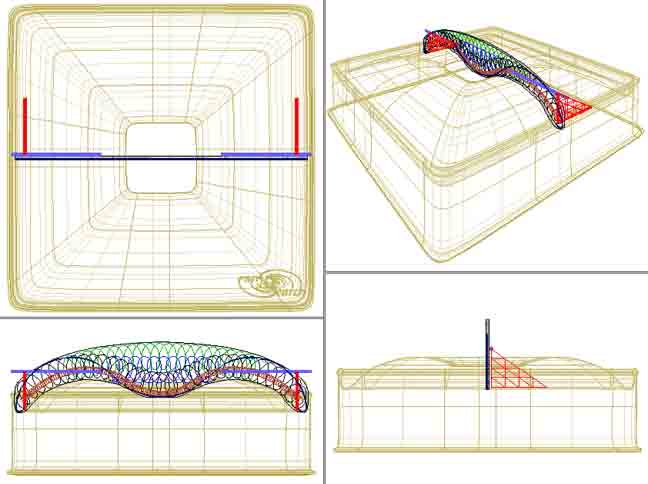

After the cementitious composite has developed adequate strength, the truss is ready to tilt into place. The tilting axle, as illustrated was placed at the centroid which allows economical tilting without expensive cranes. Much simpler winches, hoists, tackles or ropes can be employed. Appropriate ties would already protrude from the vault below. These would tie to truss at critical junctures. Next below is illustrated the truss after it is rotated or tilted up.



A thickness of 4 inches was drawn in the CAD model, which if made of concrete would weigh around 4 tons.  Perhaps it could be found that a variable thickness will benefit the system. Much thinner, thickness might also be permitted, much depending on the material used. If we apply the greatest thickness near to the top of the truss, then it may do the most good as a compressive member. (Let the engineers and pioneers work this out).



No doubt crane owners may like to continue using there good equipment! Cranes do have an important place in the world. Therefore another approach to building modular trusses like this in a production facility. It has been illustrated on this page. Again, innovative technique is offered to extend the investment possibilities.



Since writing this webpage, this recurve principle seems to manifest in yet another structural exploration of mine.  To me the recurve principle seems to apply to my Anechoic Auditorium page.



Note: These pages are placed in the public domain and are furnished "as is". The author assumes no responsibility for the use or misuse of the concepts in this series. All authorities should be satisfied first, as might be required, by relevant laws, before any building proceeds.
