The first two examples were generated using a 10:1 ratio. (The ratio is helix-radius to path-radius). A green-equilateral-tetrahedron is compared with a blue tetrahedral helix in the picture below.

The generated tetrahedral-helices on this page differ slightly. Observing many differing ratio results tends to suggest that the larger the ratio, the closer this facetted helix type becomes closer to a pure tetrahedron. (However the equilateral tetrahedron has always measured slightly shorter in profile and is slightly less steep. The angle differing by a little over 1.5º).

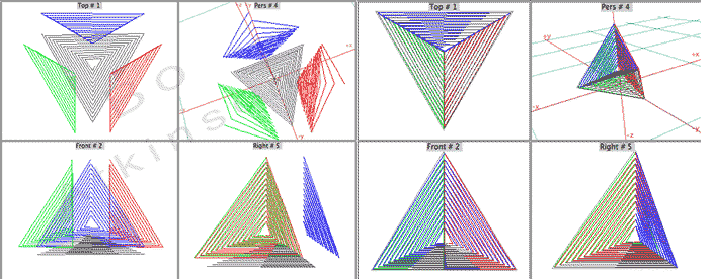

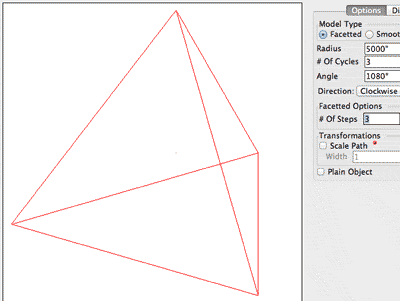

The helix radius in this example immediately above, is many times larger than the triangular source path radius. (Ratio differences at work). These are screen capture images from 2009, (using formZ):

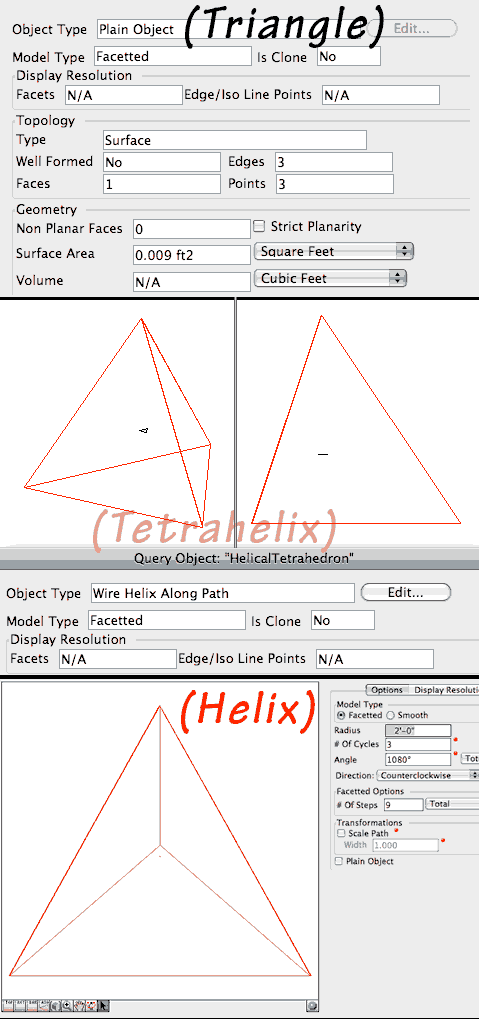

The red tetrahedral object (immediately above) is the "Wire Helix Along Path". The small black object (visible at higher image resolution, would be the flat triangular path. Downsizing image for bandwidth conservation lost the black colored pixels).

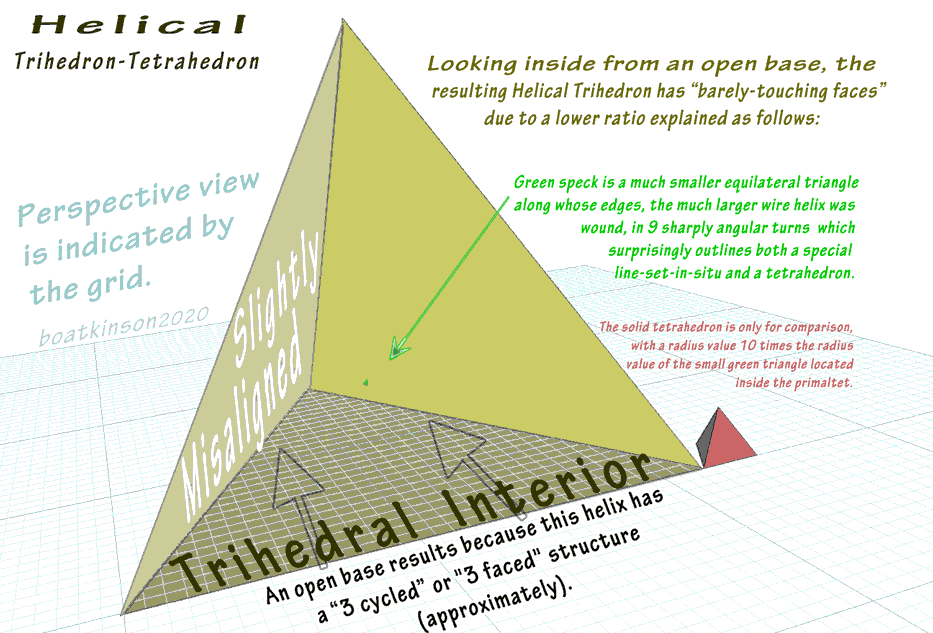

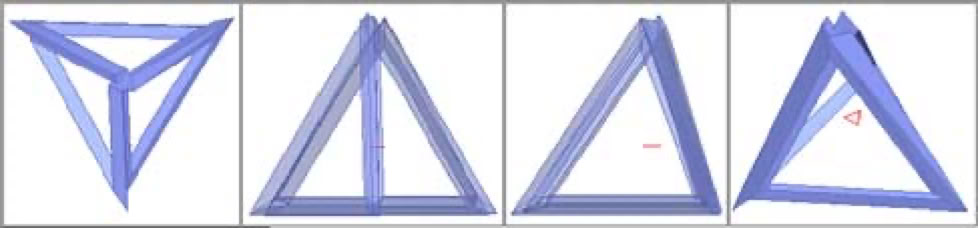

So next is a model with a larger, red colored source-path triangle. (Barely visible even the low resolution image).The resulting, facetted, 9 Step helix, (3 'turns' per cycle), was then Swept or made into a solid to emphasize the approximation-feature, of true equilateral tetrahedron rendition.

The fact that an absolutely ea qua lateral tetrahedron is not made by this verifiable procedure, actually may yet prove useful. It may render advantages in case the helix path could become a solid wire. (My own interest in this particular regard is drawn to using bi- filar wire segments of each tetrahedron leg-- In order toproject and arrange electromagnetic fields. The "slightly mismatched" vertices can represent the width of bifilar arrangements, as these would 'angle' at the vertices. Also, the slightly shorter stature of this primal tetrahedron may be discovered to provide other significant features of field projections. (However, a comprehensive investigation has not been made, regarding just how closely, a helix can be adjusted, to match equilateral tetrahedrons.)

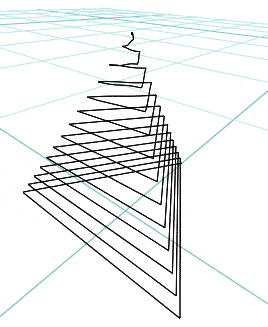

The facetted helix in the image below has a relatively low ratio. As a result, the helix facets or segments do space further apart. Observing the results of differing ratios helps visualize the geometry of this primordial tetrahedron. So the following helix can visually suggest a geometries to electrify:

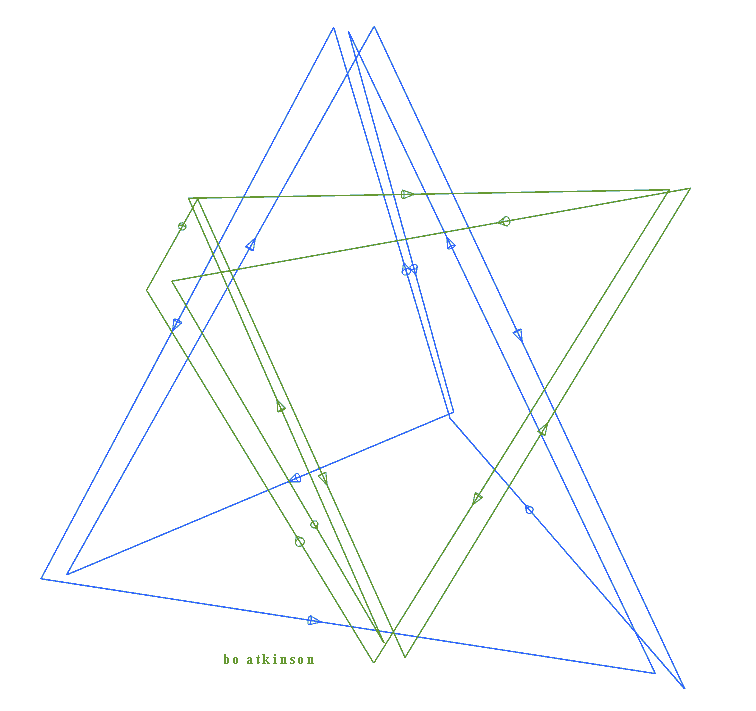

My own interests span various fields of endeavor, only partly technical in nature. The blue framework above explores the possibility of forming wires, to produce a specialized magnetic field: One poles is split into three poles. The remaining pole is opposed to these. Yet exhaustive trials deserve testing modified circuits. By changing leg connections and hence the field directions. The blue framework can represent the spacial relationships of wires, (or helix-coil-turns). Visualizing the tetrahedral star circuitry visualization below was added to this page on Nov 2012.

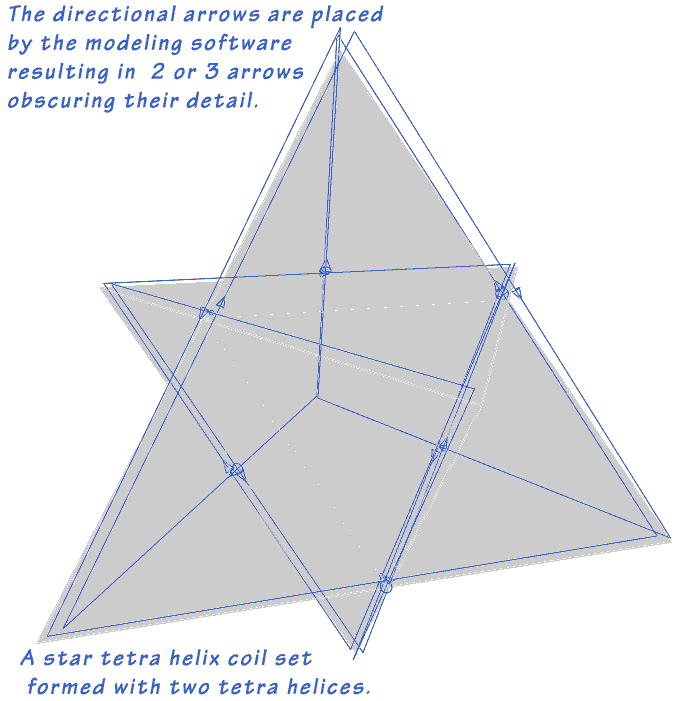

Next is a view at a slightly different view angle. Notice also that the spacing of the wire frame models vary. Each model is utilizing a different ratio between the source path, equilateral triangle and primal helices. (These may yet be adapted to more intricate frameworks like my Fractal StarTetrahedron. Visualizations of the expected trefoil, Split pole, field effect, will be added in future.

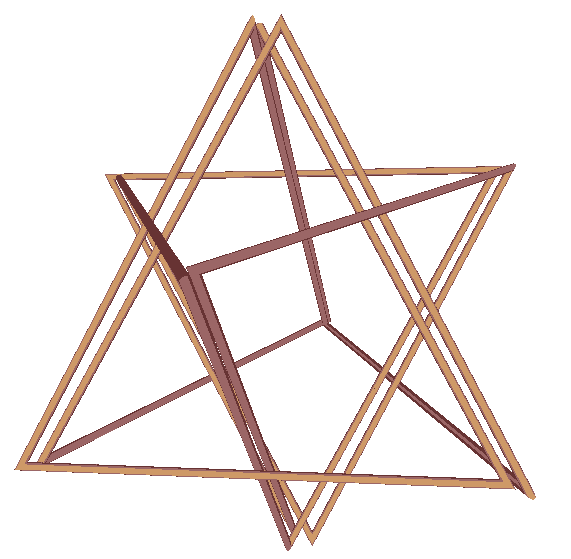

Yet another model below visualizes a quick render emulating copper bars with sharp corners. To emphasize the physical challenge of forming and 'perfecting' a copper, tetrahedron circuit: The close bars/wires would be insulated but touching. If not to use square-cross sectional conductors. (Yet another experimental issue to study.).

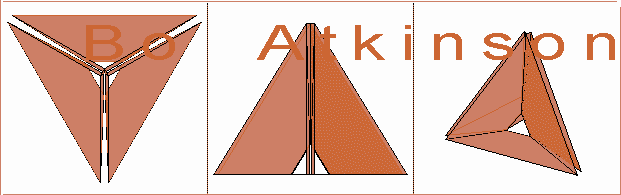

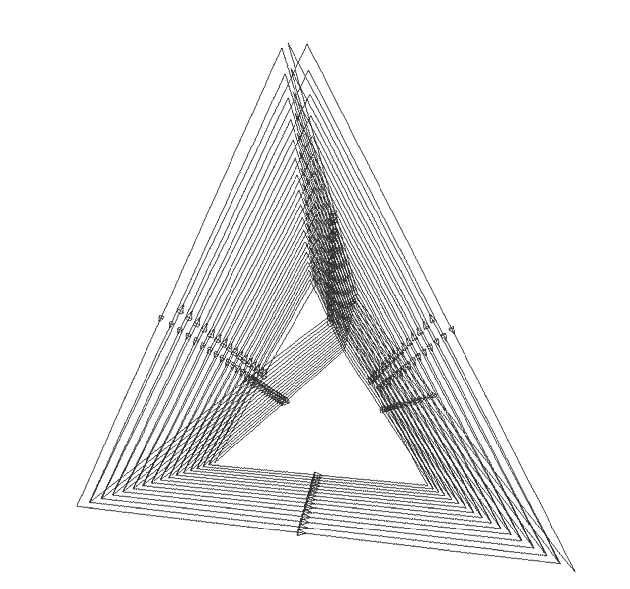

Next model below explores a flat faced tetrahelidron, for research with wave guide effects. The plate separation is exaggerated to represent insulation which allows this configuration to form a series electrical path around all plates. (through centralized interconnection).

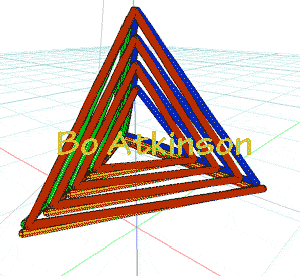

Next below is another pending example for proposed research. On right below is a tetrahedral arrangement of 'coils' and to the left is the 'disassembled' or spaced out assembly. To emphasize the the geometry of the arrangement of 4. conical coils.

Update of 2021 was finally uploaded here.

I would closely observe and adjust the resultant field concentrations towards the tetrahedral center. At the most central point, thethree uppermost coil fields could 'funnel into the bottom most coil field. This construct could be studied alone or as one intact component within larger configurations shown below.

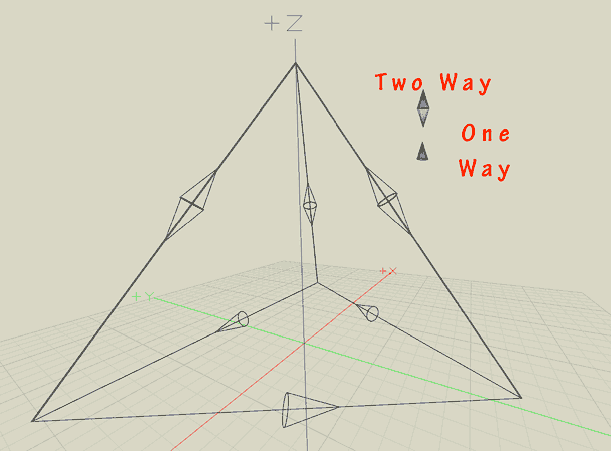

Further examples may be seen here. Electrical circuits for these would interconnect by mid points and by vertices, dependent upon the assembly... There also remains the fact, that 3 legs of the primal tetrahedron (heli-tet?), have wires with opposite alignments (or polarities). While the remaining 3 legs are single wires. I will elaborate on my work with these assemblies as more observations are collected from from experiments. I would have enjoyed experimenting with better equipment and training. My experimental coils are a little crude.

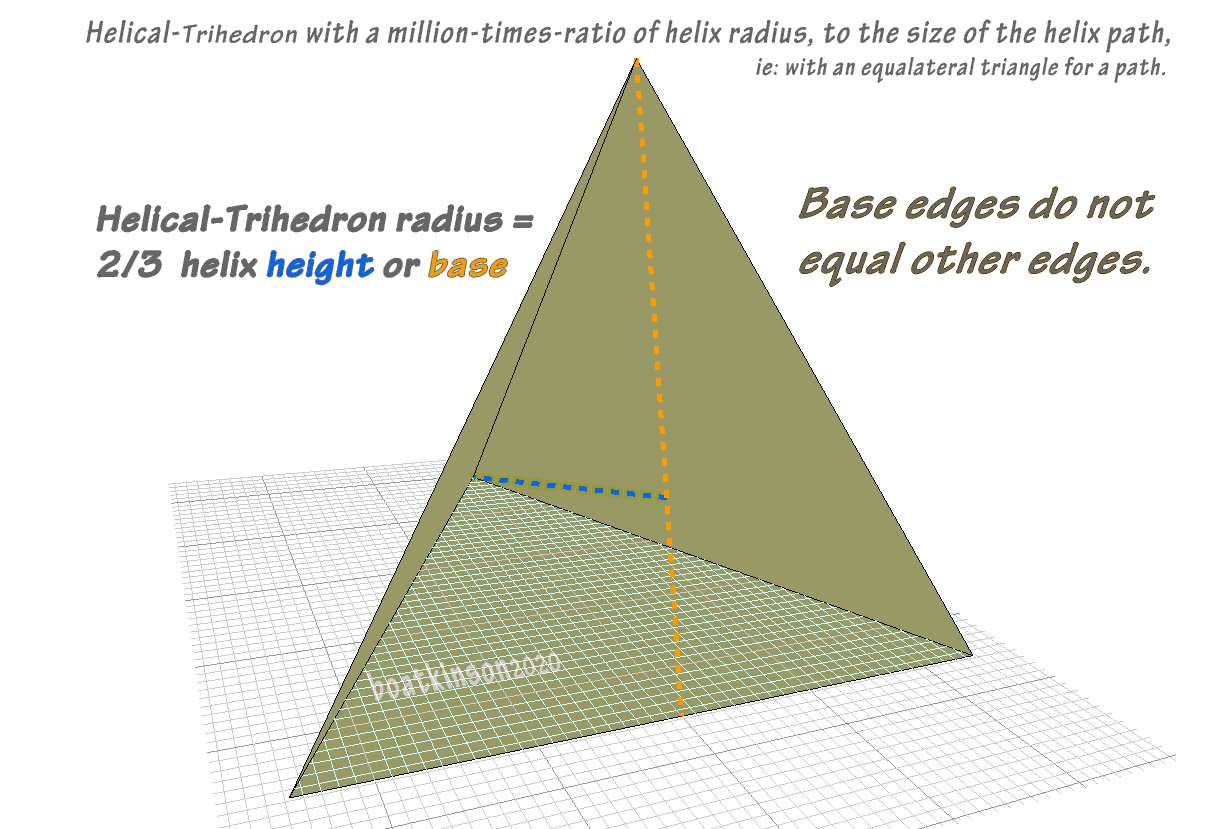

A mathematical helix formula generates three surprisingly aligned surfaces resembling a tetrahedron. It's base is open and all of the triangular apex heights are equal, unlike the regular tetrahedron apex-height, which is greater than it's other attached triangular heights. The parallel edges are finely separated as if parallel, solid wires. The length of base edges is shorter than the vertical edges, which differs it from the tetrahedron, which has all equal edge lengths

Discovery of this particular trihedron:

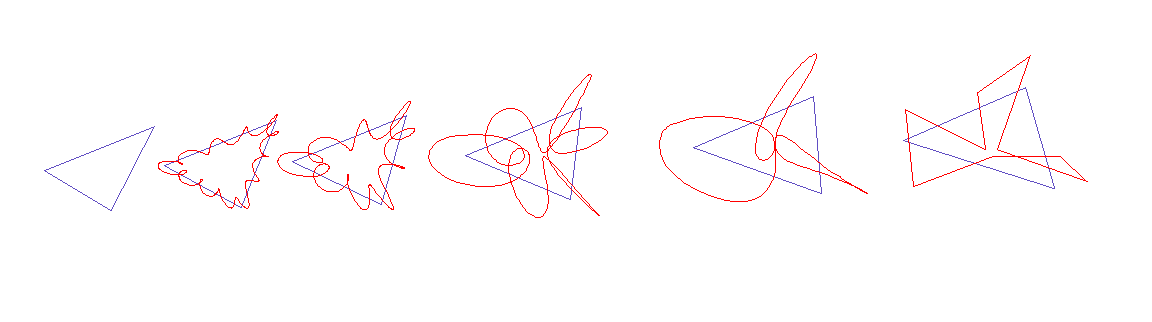

In February 2007 I modeled and observed helical structures wound around basic geometries including the equilateral triangle and by adjusting the input parameters discovered the striking resemblance to the tetrahedron, or trihedron as described above. The convergence or transmutation of two dimensional (triangles) and three dimensional structure (polyhedra) was questioned, as a hypothetical explanation, (hence the previous suggested name Primordial). The three apexes increasingly converge with the increased ratio of helix diameter to the helix path, (and structured with straight segments instead of curves). This peaked curiosity about the classification of “2d vs3d”.
